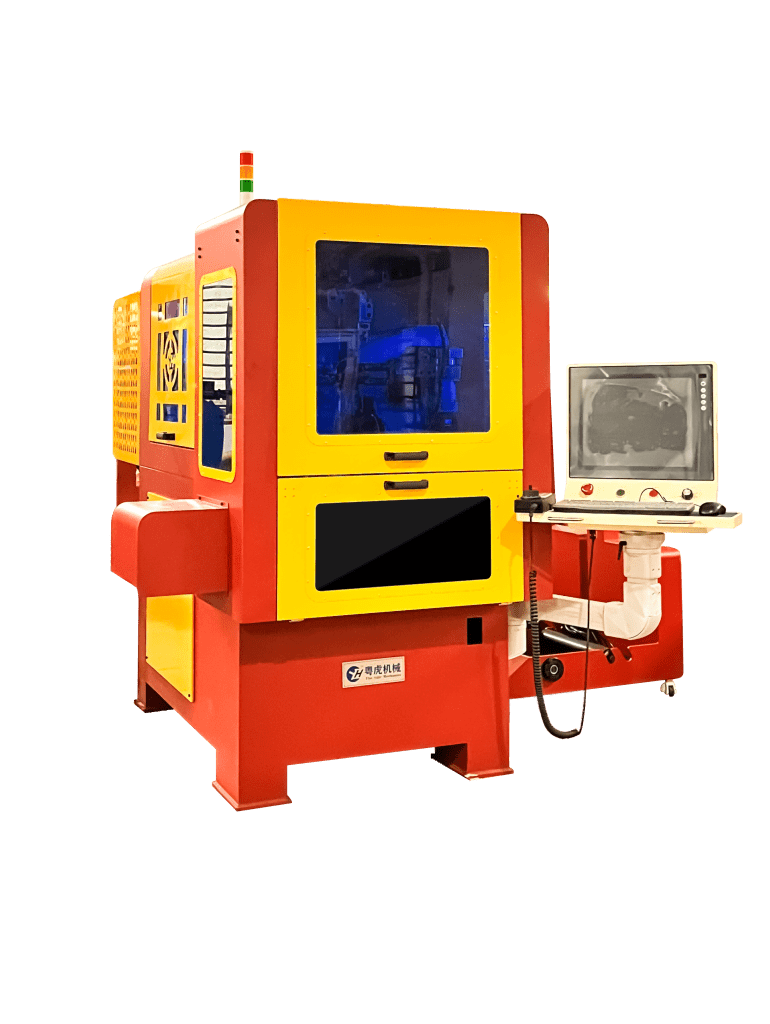

YH-3D-10A Bending-winding compound machine
A generalist choice for flat wire/round wire coil winding and bending:
- Wide application: wire bending, flat wire winding, round wire winding.
- High accuracy and high speed guarantee.
- Compact structure and small volume.
- Easy to set machine and program.
- Automatically wire feeding and winding.
- 1 machine to achieve multi-application and different wire.
Optional customized solutions: wire feeding, peel removing, tin coating on end, wire end bending, wire end stamping, winding size customized
How does it work?
Let's make something significant today!
Technical information
Type | YH-3D-10A |
Wire Diameter | ∮1.0mm-∮4.0mm |
Feed rollers | 3 sets |
Rotary angle | +150° to -150° |
Platform up/down stroke | 70mm |
Bending head, right/left stroke | Left 25mm Right 25mm |
Feed length | Infinite |
1th axis | Sanyo 0.75KW |
2th axis | Sanyo 0.75KW |
3th axis | Sanyo 0.75KW |
4th axis | Sanyo 0.75KW |
5th axis | Sanyo 0.4KW |
6th axis curve | Sanyo 0.4KW |
7th axis feeding | Sanyo 2.7KW |
8th axis turn spindle | Sanyo 0.4KW |
9 axis turn plate | Ourui 3.8KW（With brake） |
10 axis peel removal | Taida 0.75KW( separately control ，with dust catcher) |
Servo total power （KW) | 11.45KW |
Max feeding speed：（m/min） | 80 Meter/min |
Feeding precision：（mm） | 0.1± |
Supported program QTY | 10000 |
Language | 中文/English |
Input voltage | 380V |
Running voltage | 220V |
Power of feeding machine：(KW) | 400W |
Electric capacity (KVA) | 10 KVA |
Weight：(KG) | 1050KG |
Size：（length*width*height）(mm) | 1846*1841*1727mm |
Maximum uploading weight of feeding support：(KG) | 100KG |
Diameter of feeding support plate：(mm) | Material feeding plate 200-600mm |
Size of feeding support：（Length*width*height）(mm) | 924*602*1482mm |
Straighten wheel quantity | 14 |
Screw rail | 8 |
Fit material | Metal |
CNC control system | Control Screen |
Control plate | |
Format programming | |
Unique CNC system for wire forming |
